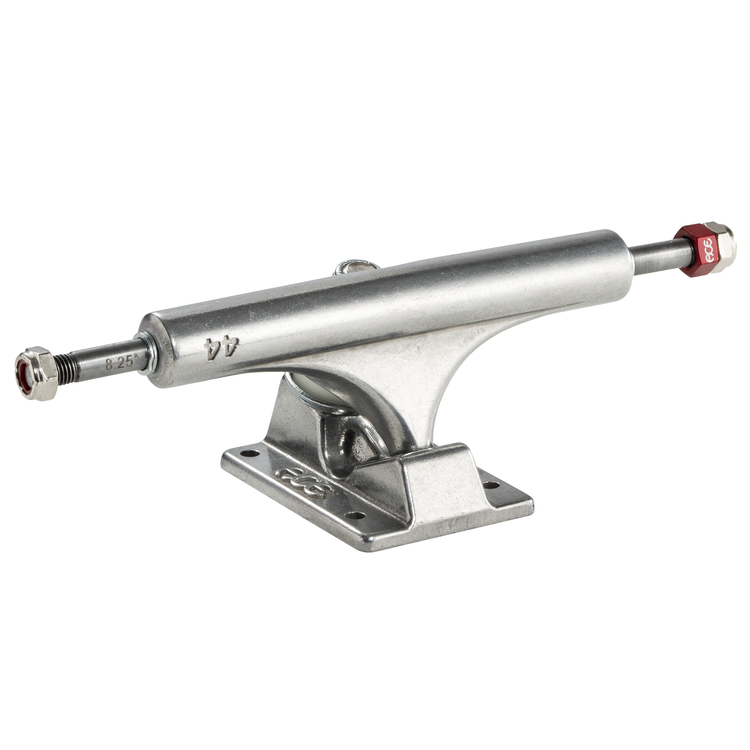

Ace Trucks AF-1 44 Polished Skateboard Trucks

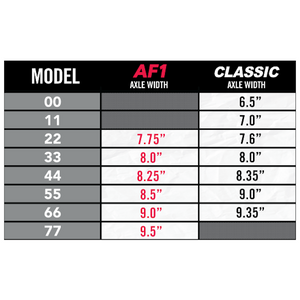

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.
The Ace AF1, tomorrow’s technology today!
Axle width: 8.25” (209mm)
Hanger width: 5.6” (143mm)
Truck height: 2.1” (53mm)
Fits boards: 8.125” - 8.3”
Weight: 13.9 oz.
Manufactured with superior quality AA 356.2 alloy using our own proprietary casting method.
True T6 heat-treated baseplates and hangers.
SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
Patent pending rethreading axle nuts - no more damaged axle ends.
Durable Hand-poured 96a urethane pivot bushings for smooth as silk response.
Refined bushing and cup washer shapes for a cleaner turn.
Machine-faced hanger ends for precise bearing contact.
Trucks Are Sold In Pairs
